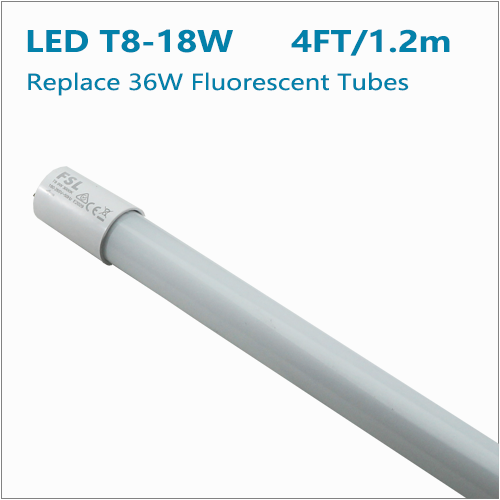

Installation / Retrofit Guide:

This guide explains the steps necessary to install or retrofit the T8 tube light and ensure optimal performance. This guide is for reference only and is intended for qualified electricians or lighting technicians.


Warnings:

•  Risk of electric shock! Ensure that power is off when doing the retrofit/installation of the LED tube light.

•  LED Tube light should be installed by a qualified electrician or technician.


User Responsibilities:

It is the responsibility of the contractor, installer, purchaser, owner and user to install, maintain and operate the device in such a manner as to comply with all state and local laws, ordinances and regulations.


Installation Steps:

1.  Disconnect power to the fixture at the source. DO NOT SIMPLY SWITCH OFF FIXTURE.


2.  Ensure you are working with standard Fluorescent Light fixture. Note: your fixture may have more than 1 tube light and may/may not have a starter.


3.  Unpack the LED Tube Light:

-  Unpack and carefully examine the product.

-  Do not use the product if it is damaged.

4. Open the fixture housing. Cut the wire and remove the ballast. Remove the starter if exists. Rewire the fixture according to the instruction showed in the picture.


5. Check to ensure the wiring is done correctly then close the fixture housing.


6. Affix warning labels to fixtures near socket so they are visible to tube light installers.


7. Re-connect power to the fixture and turn on the switch. The LED Tube Light will light.
